Wind energy.
Let's look at non-traditional options for power generation, namely wind power. It is still a moot point to the possible existence of this type of energy production without major subsidies for extensive and widespread use of these devices (not just for special occasions). However, the environmental issue is not challenged. Well, that's besides the beautiful:-)
Let's see ...
In Europe and the United States are huge wind turbines - a familiar element of a country landscape. These beautiful giants are set not only on land but also on the water expanse.
The idea of using wind power to produce electricity is not new. She was born in the late 19th century, and it's winter 1887-88, when one of the founders of the American electrical industry, Charles F. Brush built a prototype is automatically controlled wind turbine to produce electricity. At that time, it was a giant - rotor diameter was equal to 17 meters, and consisted of 144 blades made ... cedar.
In Europe, the first wind power station was commissioned in 1900, and the beginning of the II World War II worked on the planet millions of wind turbines.
Modern wind turbine - a steel tower 70 to 125 m, on top of which are set generator and rotor blades made of composite materials. Today use 56-meter blades.
Enormous energy of moving air masses. Reserves of wind energy in more than one hundred times the reserves of energy content of all the world's rivers. Constantly and everywhere on earth winds. Climatic conditions allow to develop wind power in the vast territory.
At first glance, the wind seems to be one of the most affordable and renewable energy sources. Unlike the Sun, he can "work" in summer and winter, day and night, in the north and the south. But the wind - it is very diffuse energy source.
Wind energy is almost always "smeared" over a vast territory. Basic parameters of the wind - speed and direction - sometimes change quickly and unpredictably, which makes it less "robust" than the Sun. Thus, faces two problems that need to be addressed to make full use of wind energy. Firstly, it is able to "catch" the wind kinetic energy with the maximum area. Secondly, even more important to achieve uniformity, the constancy of the wind flow. Until the second problem is solved with difficulty.
To solve the first problem of the structure of the aircraft involved experts who know how to choose the most appropriate profile of the blade, in order to maximize the energy of the wind. Efforts of scientists and engineers created a variety of designs of modern wind turbines.
This multibladed "daisy" and screws like airplane propellers with three, two or even one blade. Vertical structures are good because they catch the wind from any direction; the rest have to be developed in the wind. This vertical rotor resembles cut along the axis and mounted on a barrel. There are also original solutions. For example, a truck with a sail goes on the ring of the rail, and its wheels are driven by an electric generator.
Clickable 1700 px
Among the tens of thousands of wind turbines are huge, and there are small, one house. And this is just the giant windmills. One of the largest wind turbines today was built in September 2002 near Magdeburg in Germany. His power - 4.5 MW each of the three blades is 52 meters long and 6 wide, and weighs 20 tons. Is attached to the rotor 120-meter tower.
The latest achievement of wind energy - wind turbines, rotor diameter which is greater than the wingspan of the aircraft giant, even our "Ruslan". Such a plant has a capacity of 2.1 MW and is capable of providing electricity for 800 modern houses.
The most common type of wind power (wind turbines) is a turbine with horizontal shaft and the number of blades from 1 to 3 According to various authors, wind energy potential of the Earth is 1,200 TWh, but the use of this type of energy in different parts of the Earth are not the same. In Russia, the gross potential of wind energy - 80 trillion. kWh / year, and in the North Caucasus - 200 billion. kW / h (62 million. tce. consumption). These values are significantly higher than the corresponding values of the technical capacity of fossil fuels. The average wind speed at a height of 20-30 meters above the ground should be large enough to power the air flow passing through the duly oriented vertical section reaches a value suitable for conversion.
Wind power plants are beneficial, as a rule, in the regions where the average annual wind speed of 6 meters per second and above, which are poor in other energy sources, as well as in areas where the supply of fuel is very expensive.
Norway announced plans to build the world's largest wind turbine in 2011. Work is already underway. The height of the wind turbine will be 533 feet and a rotor diameter - 475 feet. As expected, the turbine will provide electricity for 2,000 homes. Record prototype worth $ 67.5 million.
Wind-power plant located at the site where the average power density of the air flow is about 500 W / m 2 (the velocity of air flow is then equal to 7 m / s) can convert into electrical energy of about 175 of the 500 W / m 2. should also take into account the changes made wind turbines in the landscape of the area, their location should not only conform to standards of safety and effectiveness, but also the correct placement on the ground (mill wind turbine located chaotically less effective than those that are in a certain geometric sequence) .
Small wind turbines are usually designed for standalone operation. System, which they give out energy, finicky, require the power supply of higher quality and do not allow interruptions in power, for example, during periods of calm. Therefore they need a doubler, i.e. reserve energy sources, such as diesel engines, the same as that of wind turbines or less power.
As for the more powerful wind turbines (over 100kW), they are used as power and included generally in the power system. Usually on the same site set a sufficiently large number of wind turbines forming the so-called wind farms. At one end (farm) can blow wind on another in this quiet time. Wind turbines can not be placed too closely, so they do not obstruct each other. Therefore (farm) takes a lot of space.
Wind power is heavily dependent on the vagaries of nature. Wind speed is so low that the wind machine can not work, or so high that the wind machine, you must stop and take measures to protect it from destruction. If the wind speed exceeds the nominal operating speed of the excavated mechanical wind energy is not used, so as not to exceed the rated electric power generator. For efficient operation of wind turbines they are placed in open spaces, at least in the territories of agricultural land, which increases their productivity. In mountain areas, wind plants operate efficiently due to the natural features of these areas, there is dominated by the movement of air masses with great force and speed, in addition, it provides energy in remote areas.

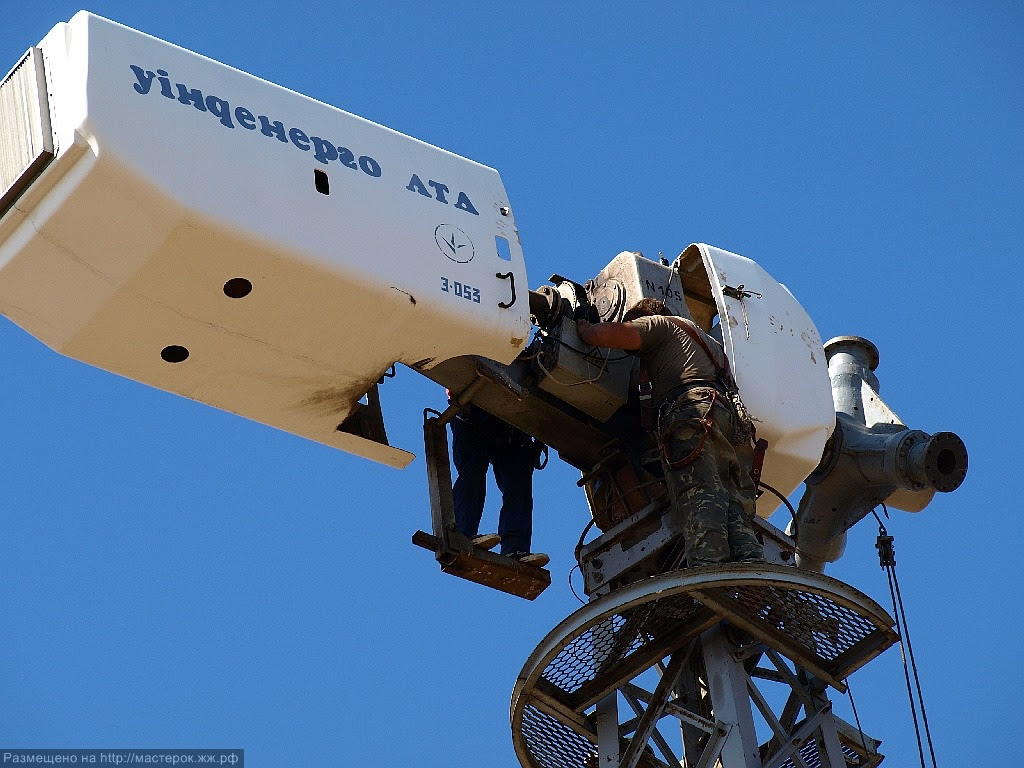

Proper installation affects the efficiency of the wind units so specific production of electricity during the year is 15 - 30% of the energy of the wind, or even less, depending on the location and position of installation options.
The current world record for the size and capacity (141 meters and 7 MW) of wind generators belongs Enercon E-126, located near the German town of Emden.
Installation of the wind turbine Enercon E-126:
Wind turbines do not pollute the environment, no effect on the heat balance of the Earth's atmosphere, the lack of oxygen consumption, carbon dioxide emissions and other pollutants. To make using them a lot of electricity, needed a huge area of land. They work best where strong winds blow.
Today, wind power units reliably supply current oil; they are successfully working in remote areas, on the distant islands in the Arctic, thousands of farms, where there is no nearby large settlements and electric utilities.
In designing the system the most difficult problem was that at different wind strength to provide the same number of revolutions of the propeller. After connecting to the network generator must give not just rkakuyu some electricity, but only an alternating current with a given number of cycles per second, ie. E. Standard frequency 50 - 60 Hz. Therefore, the angle of inclination of the blades relative to the wind is controlled by poporota around their longitudinal axis: in a strong wind, this acute angle, the air stream flows freely blades and gives them a smaller part of its energy. In addition to regulating the entire blade generator automatically turns on the mast of the wind.
One of the problems of the wind units is excess energy in windy conditions and welfare of its period without vetreya. Ways to store a lot of energy windy consider the most simple one way: is that the wind wheel is driven by a pump which pumps water into the upstream reservoir, and then the water draining out of him, drives a water turbine and generator AC or DC . There are other ways, and projects from the ordinary, although low-power batteries to unwind giant flywheel or injection of compressed air in underground caverns and up to the production of hydrogen as a fuel. Especially promising is the last way. Electric current from the wind machine decomposes water into oxygen and hydrogen. Hydrogen can be stored in liquefied form, and burned in the furnaces of thermal power plants as required.

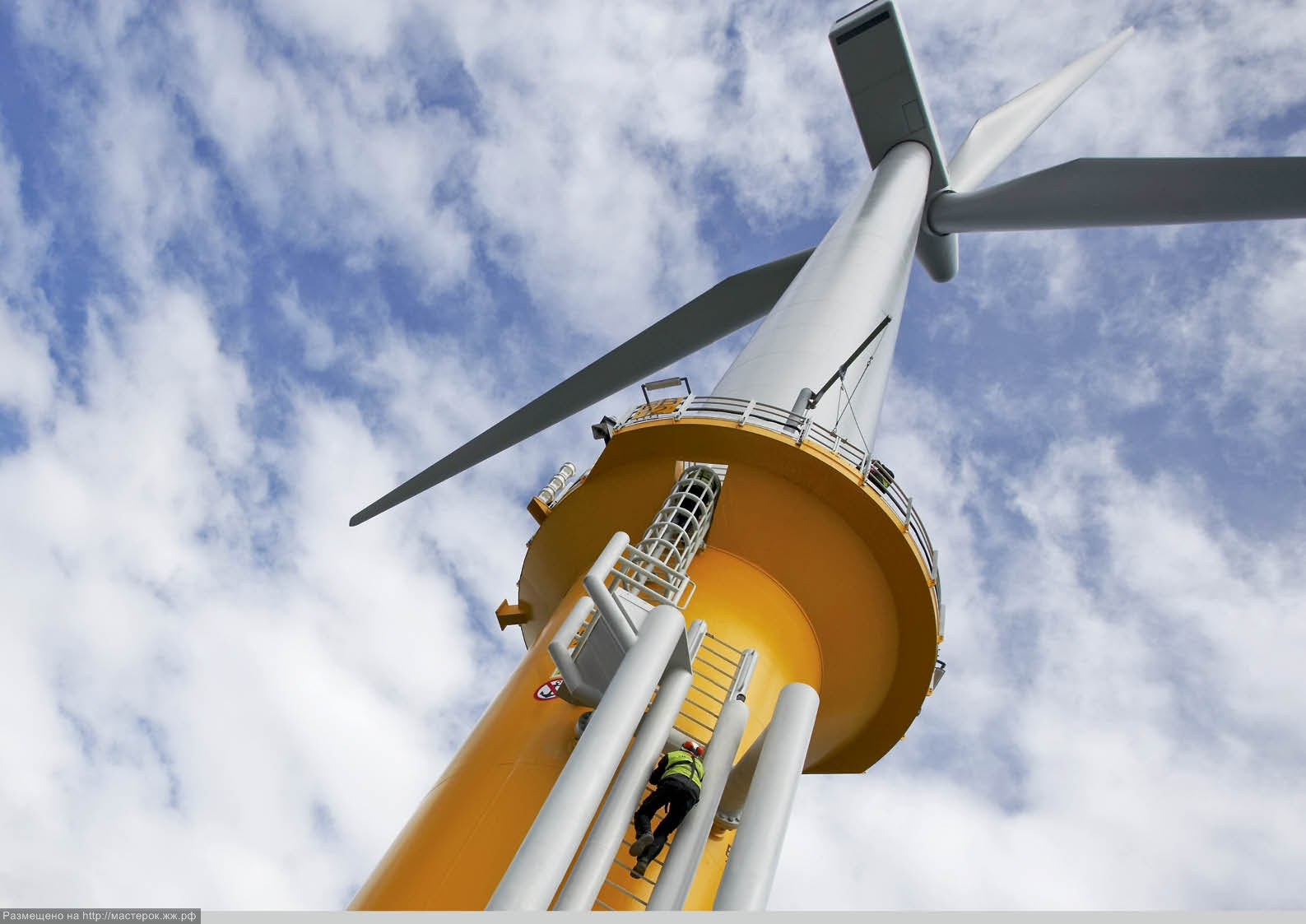

Windmills put not only on land but also on the water expanse:
The highest wind turbine in the world is located in the province of San Juan at a height of 4110 meters above sea level. It has established the largest gold mining company in the world - Barrick. Turbine is listed in the Guinness Book of Records.
Wind turbine - expensive equipment, but the cost of its acquisition will pay off for the first 7 years of operation. Expected lifetime - 25 years.
European leader in wind energy - Denmark. In this country, they are usually placed on the rocky reefs and shallow waters to a distance of 2 km from the coast.
Clickable
The most windy place in Europe believe the Scottish External Hybrids. The northern part of the island is blown continuously. Wind there is almost never ceases.
At the end of last year the company Deepwater Wind announced plans to create the world's largest deep-water wind farm.
It is expected that it will be built over 29 to 43 miles off the coast of Rhode Island and Massachusetts, and will produce up to 1,000 megawatts, which is comparable to the nuclear power unit. Wind turbines will be installed in the bottom of the ocean with a depth of 52 meters - it's much deeper than any other modern wind farm.
Clickable
But there is still an interesting windmill

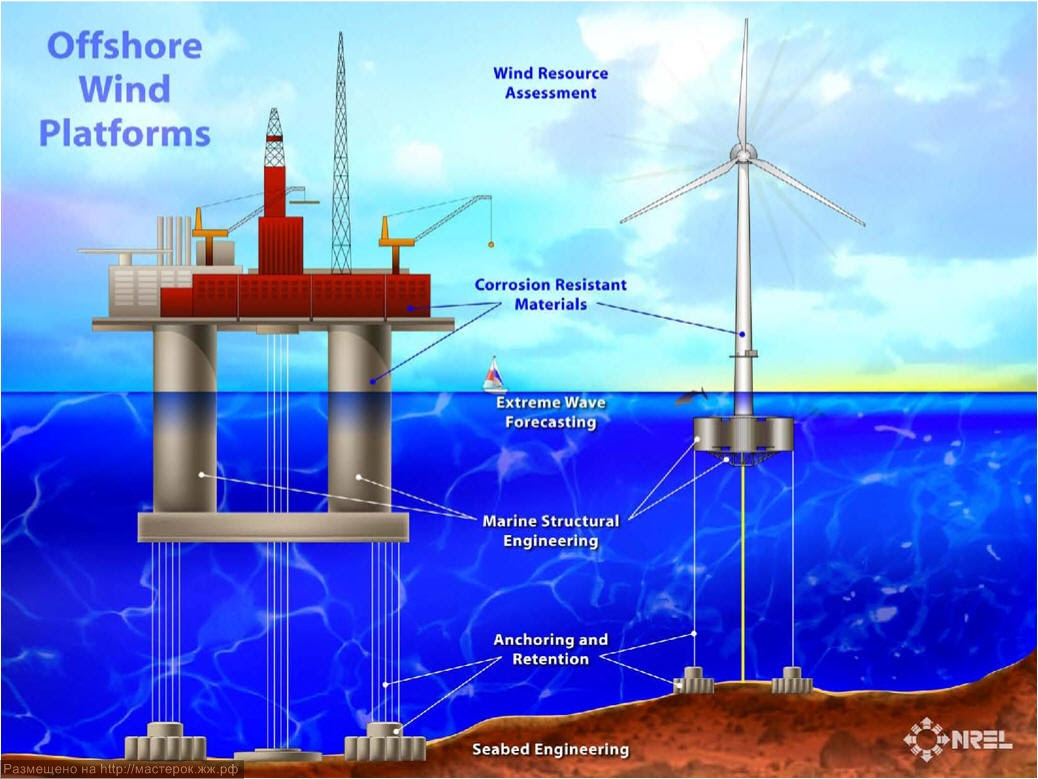

The world's first floating wind turbine has been installed in the North Sea off the coast of Norway. This was reported on Tuesday, the Norwegian energy company StatoilHydro. Turbine, called Hywind, reaches a height of 65 meters and weighs 5,300 tons. Installed it about 10 kilometers from the island Karma, at the south-western coast of the country, according to a company press release.
"Turbine" is set to a floating platform that is secured by three anchors. Act as ballast water, and stones are placed inside the platform.
StatoilHydro plans to test Hywind over the next two years, before deciding on the production of a larger number of floating wind turbines.
According to experts StatoilHydro, this technology may be of interest to Japan, South Korea, the American state of California, the East Coast of the United States and Spain. This is only part of the potential markets.
Hywind can be installed at a greater distance from the shore than static wind turbines already in operation. We are talking about a depth of 120 meters to 700 meters, which allows you to place a new turbine is much farther from the coast.
In the creation of 2.3-megawatt floating turbine has been invested in a total of 400 million. Kroons (46 million euros), which makes it more expensive than terrestrial counterparts. Now the main task of the manufacturer - reduce the cost of its development.
Wind energy is an enormous energy, you just have it properly prepared and stored.
We now consider the negative impact of wind turbines on the habitat of humans and animals, on television and communication paths of seasonal migration of birds. Really big wind turbines affect the TV signal. At a distance of 0.5 km, they cause interference to TV signals, due to the fact that the blades of the wind turbine wind wheel reflect signals causing interference to TV signals. As a consequence of the large wind turbines over 20 kW there sufficient number of infrasound that affects the state of humans and animals. From large wind turbines and natural noise arises from the operation of the wind wheel. Therefore, placement of wind turbines over 10 kW is not desirable in the redistribution of the city limits. These negative factors are trying to combat, in particular by using new types of materials that are capable of transmitting signals in a large range, etc.
Wind power is growing interest in and commitment to the improvement of facilities for maximum efficiency. Many countries are beginning to use them in homes, farms, small production.
But such a project:
Unusual wind farm, which has not three, but two blades, will soon appear on the eastern coast of Scotland. Extravagant wind turbine is likely to be more famous for the fact that he can take vertolёty.Po According to Inhabitat, the Scottish Energy Minister Fergus Ewing (Fergus Ewing) recently announced that the government approved the construction of an innovative wind turbine designed by a Dutch company 2-B Energy. Giant two-bladed wind turbine 6 MW will be erected in the complex Energy Park Fife about 20 meters from the shore.
Raises many questions helipad is present only in the project pictures in the "overall impression." In the Scottish government helicopters landing on the wind turbine is not discussed (Figure 2-B Energy). 2-B Energy from scratch developed a new type of turbines in 2007. Its wind turbines designed specifically for work on the water in the coastal zone, where there are no strict requirements for noise and severe restrictions on the size of the structure. As for the two blades instead of three, the company explains, the less moving parts, the better in terms of maintainability.
According to BusinessGreen, 2-B Energy wanted to install two wind turbine in Scotland, but has been approved for only one.
"The fact that innovative companies decide to test their new ideas is in Scotland, once again confirms the reputation of our country as a place for the development and implementation of all types of new" green "energy technologies", - the Minister said Ewing. Apparently, the construction of the experimental turbines will begin in 2014.
Clickable
Well, another proektik:
A small American company Joby Energy has developed a setup project in the form of huge flying snake. The serpent is a rectangular metal frame, carrying a dozen small blades. First blade driven by the motor and, like a propeller plane, raise the frame to a height of 400-500 meters. There it take powerful high-altitude winds that rotate the blade, producing electrical energy. Part of it is to maintain the carcass in the air, and the main part is transmitted to the ground for the metal "thread" that connects the frame to the launch site. Of course, this requires strong and light materials needed to build a flying (and under intense pressure) giant, tens of meters in length, frame, and electronics, which should provide automatic flight control and maneuvering, and sensors continuously measure the speed, wind direction and orientation of the device and the computers that are on the instructions of these sensors is automatically and continuously monitor and change orientation as desired frame to the wind in order to maximize efficiency, and much more, which was not even 10 years ago.
Clickable 3000 px
The new plan is not just real. He is also quite promising, as one says, but rather eloquent figure: the current energy needs of humanity is, an estimated 17 TWh, while the power of the winds in the troposphere is 870 TWh, ie more than 50 times greater. (Recall that the troposphere is called the surface layer of the atmosphere to an altitude of 20-30 km, separated from the above lying stratosphere transition layer, this layer is formed under the characteristic of the troposphere permanent "jet streams» (jet streams) with wind speeds of 100 to 400 kilometers per hour. For comparison, the earth is considered hurricane speed above 117 kilometers per hour.) It is no accident that the company feels so strongly one system after another. Agency NASA in the near future holds a kind of all-American competition to design a reliable and safe flying turbine capacity of 300 kilowatts. The fact that in this competition the firm will be one of several dozen competitors, demonstrates the interest shown by a new kind of "clean" energy. But even more pronounced on the same says the interest in the new plan, the American government. That's exactly it, NASA has allocated money to coordinate and verify all these private projects.
Even at this altitude flying turbine may well show its advantages over the ground, because the force of the wind, as already mentioned, increases with altitude, and the power of wind turbines, as we have learned the practice, is proportional to the cube of the wind strength. This means that even twice the height due to the force of the wind turbine can provide a flying 8 times more power than the ground, while the triple - even 27 times larger. Estimator is believed, in the future, when such turbines will be flying at an altitude of 8-9 km, the lowest rate "jet streams" with their average wind speed of 240 kilometers per hour, they will be able to give 20 000-40 000 watts per square meter blades instead of 500 watts, which give the current terrestrial wind turbines .
In addition, they have the further advantage that the installation run, where attached nanotube "thread" (aka - the cable to receive power), occupies a very small area. And the cost of the turbine, the snake is much smaller than, say, of the Norwegian giant, which is now preparing to swim in the sea. On the other hand, flying windmills, of course, inferior to such giants on the maximum capacity for each individual installation. To catch up with the capacity of Norwegian floating wind turbine, wind turbine flying must have a working area of several hundred square meters, and it confronts designers are very difficult - and yet unsolvable - technical problems (in the sense of strength, lift and so on.) So overtake ground wind turbines on the total power can only be due to the amount of I, and therefore the new plan enthusiasts say today the formation of a huge network of flying windmills launchers which will be collected in certain areas of a country - a sort of project "Desertec", offering sugar-coated solid solar mirrors.
And yet, despite all these difficulties, we can say that the plan of energy extraction from the air begins to take shape. Friendly and possibly very significant over time contribute to a world free of the stranglehold of oil and the dangers of global warming flying windmills future probably will make.
Clickable
Clickable 2000 px
Clickable
But what happens to wind turbines during ekspluotatsii:
By the way, who missed the discussion of the prospects of fusion energy (Tokamak) - YOU HERE.
